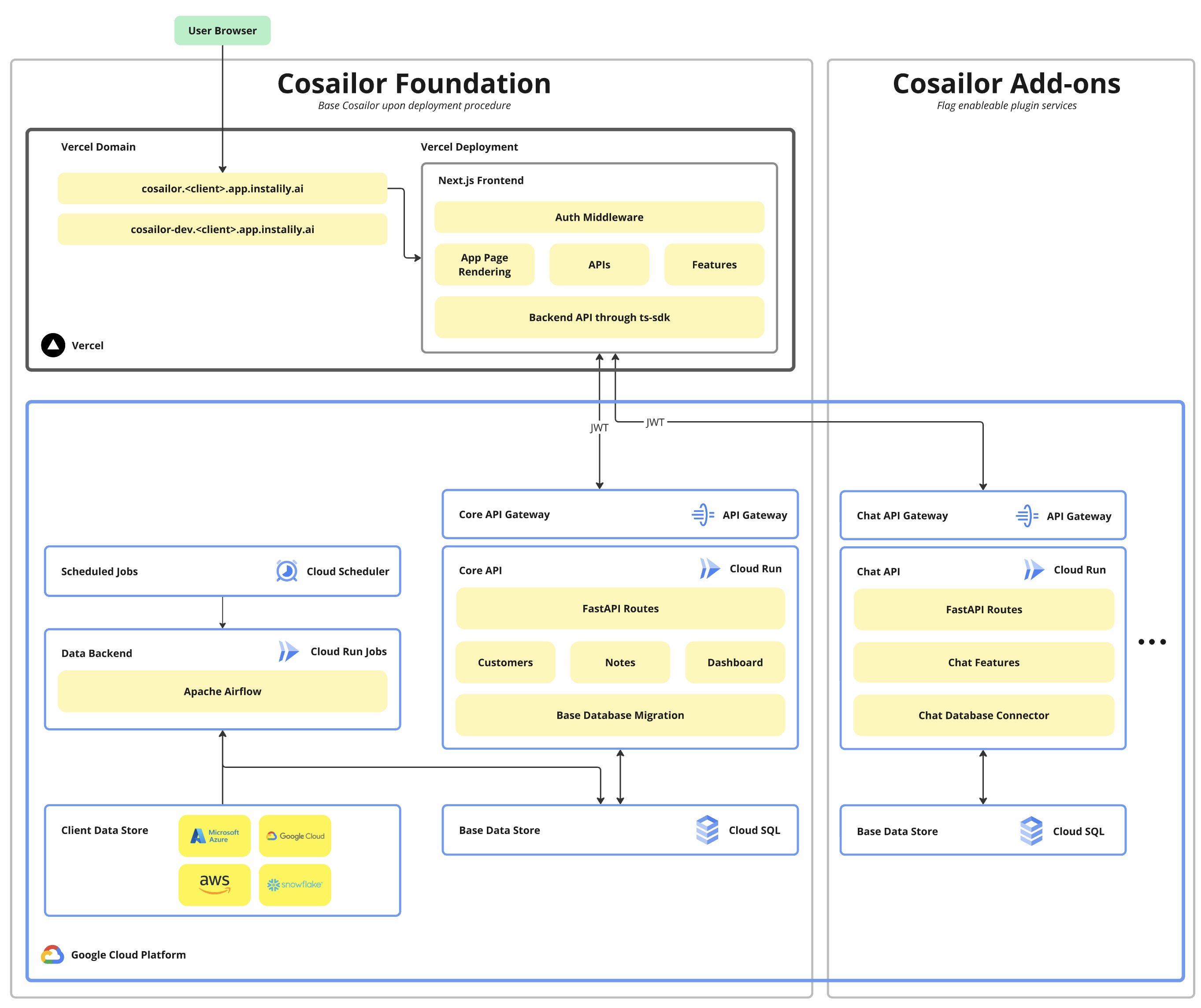

User flow
- User (browser) logs in via OAuth and hits the Next.js app (Vercel).
- The web app calls backend services via the TS SDK; requests are JWT-authenticated.
- Requests pass through an API Gateway to Core API.
- Services read from Cloud SQL (base data store) and, when needed, from Client Data Stores through managed connectors or jobs.
- Scheduled Jobs (Cloud Scheduler → Cloud Run Jobs / Airflow) precompute aggregates for fast dashboards.
Key properties
- Page-shaped endpoints (view-models) to render screens in one trip.
- DB-first: migrations are the data source of truth.
- Contracts: OpenAPI emitted from FastAPI; SDKs generated for TS/Python.
Components
Frontend (Next.js + Vercel)
- Next.js (App Router) for pages, server components, API calls through
@instalily/ts-sdk.
- Auth middleware verifies session, attaches tenant & tracing headers.
- Design system (
@instalily/ui) provides dashboard primitives.
API Gateway (GCP)
- Single public base URL; routes to Core/Chat via
/v1/{service}/….
- Handles JWT verification, rate limits, and cross-cutting headers.
Core API (Cloud Run)
- FastAPI service for dashboards, customers, notes, touchpoints, and email generation.
- View-model routes (e.g.,
/v1/core/dashboard/summary) compose queries and cached aggregates.
- DB migrations (Alembic) + SQLAlchemy for models.
Data Stores
- Base Data Store: Cloud SQL (Postgres).
- Client Data Stores: connectors to Azure/AWS/BigQuery/Snowflake; synced via jobs.
Jobs / Data Backend
- Cloud Scheduler → Cloud Run Jobs (or Airflow) to ingest, transform, and materialize metrics into tables or Redis.
